Use RoHS2 compliant raw materials.

◆Black spots may occasionally appear on the external surface.

◆Gate residue of screw head is 5% or less for length (L).

◆If screw is used with a nut, we recommend using the screw and nut made of the same material.

◆If screw is used with a female threaded part, we recommend maximum depth of 20 mm.

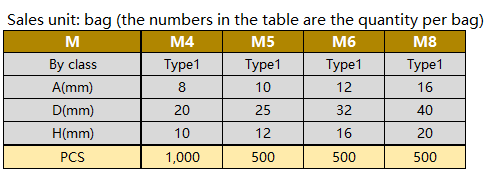

◆Values in the table are for reference purpose only, and they are not guaranteed values.

◆Please use torque driver or torque wrench for fastening. Recommended fastening torque is 50% of the torsional rupture torque.

◆Since heat resistance and chemical resistance change based on usage conditions, please test under actual usage conditions beforehand.

◆Discoloration may occur depending on lot and various conditions.

◆Sizes, shapes and manufacturers of raw materials may change without notice.
