PA6/HR-F | PPPAPOMPS | 产品中心 | Songshan Sanyi industry (Shenzhen) Co., Ltd

Continuous use temperature PA6 is 65°C/149°F,PA66 is 75°C/167°F,PA12 is 106°C/222°F
Flammability PA6・PA66 isUL94 V-2 Natural color product,PA12 is UL94 HB Natural color product.
PA6 (polyamide6=Nylon 6) is a crystalline engineering plastic. It is a strong material with small coefficient of friction.
Despite of that, it has excellent resistance to abrasion and self extinguishing properties. Since it is also oil resistant and chemical resistant, it is suitable for machine material. However, one drawback is that its high hygroscopic properties must be considered during design.

Use RoHS2 compliant raw materials.

Black spots may occasionally appear on the external surface.

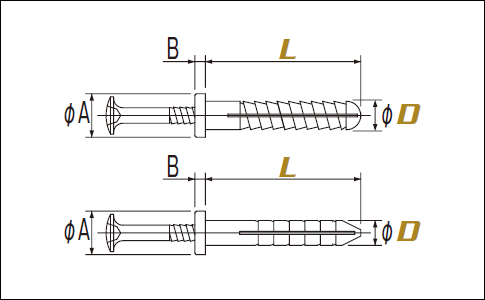

◆Gate residue of screw head is 5% or less for length (L).

◆If screw is used with a nut, we recommend using the screw and nut made of the same material.

◆If screw is used with a female threaded part, we recommend maximum depth of 20 mm.

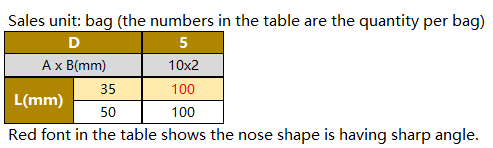

◆Values in the table are for reference purpose only, and they are not guaranteed values.

◆Please use torque driver or torque wrench for fastening. Recommended fastening torque is 50% of the torsional rupture torque.

◆Since heat resistance and chemical resistance change based on usage conditions, please test under actual usage conditions beforehand.

◆Discoloration may occur depending on lot and various conditions.

◆Sizes, shapes and manufacturers of raw materials may change without notice.
