Continuous use temperature is 105°C/221°F,Flammability is UL94 V- HB

RENY is a crystalline engineering plastic re-inforced with 50% glass fiber with polyamide MXD6 as the base polymer.

Among all plastics, it has the highest strength and coefficient of elasticity.

Moreover, due to its excellent oil resistance and heat resistance, it is used in transportation machinery parts such as automobiles, general machinery, Precision machinery parts, electrical and electronic equipments parts and civil engineering and construction material in place of metals.
Use RoHS2 compliant raw materials.

◆Black spots may occasionally appear on the external surface.

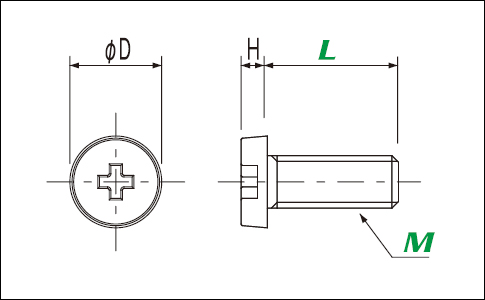

◆Gate residue of screw head is 5% or less for length (L).

◆If screw is used with a nut, we recommend using the screw and nut made of the same material.

◆If screw is used with a female threaded part, we recommend maximum depth of 20 mm.

◆Values in the table are for reference purpose only, and they are not guaranteed values.

◆Please use torque driver or torque wrench for fastening. Recommended fastening torque is 50% of the torsional rupture torque.

◆Since heat resistance and chemical resistance change based on usage conditions, please test under actual usage conditions beforehand.

◆Discoloration may occur depending on lot and various conditions.

◆Sizes, shapes and manufacturers of raw materials may change without notice.
